Oster 654 / 655 Portable Pipe & Bolt Machines



Oster 655
Capacitie
Bolt Range 1/4" to 2"
Pipe Range 1/8" to 2"



General Specifications 654 655
Height 17.25" 17.25"
Length 39.5" 39.5"
Width 17.5" 17.5"
Net Weight 265 lbs. 260 lbs.
Shipping Weight 305 lbs. 300 lbs.

The Oster 655 With Slide-In Tools

Pipe Masters Have had years of service on the toughest proving ground - job and maintenance shops. They have consistently turned out good threads while standing up under the most rigorous conditions. Flat machine ways mounted on a solidly built fabricated steel base are two reasons for the Pipe Master's durability.

Capacitie
Bolt Range 1/4" to 2"
Pipe Range 1/8" to 2"



General Specifications 654 655
Height 17.25" 17.25"
Length 39.5" 39.5"
Width 17.5" 17.5"
Net Weight 265 lbs. 260 lbs.
Shipping Weight 305 lbs. 300 lbs.

Roll-Over Headstock for Pipe Thread Machines

Roll-Over Headstock! Exclusive "Roll-Over" headstock, standard on all Pipe Master machines, allows fast, easy access to the motor compartment. Removing a single pin allows the complete headstock to be pivoted up and back out of the way to expose motor, brushes and switch box for easy maintenance.





654 – Equipped with Swing-Over Tools

The Oster 654 is equipped with special Swing-Over tools for convenient Pipe Threading Operations. The Oster Quad II Swing-Over features an automatic opening system which guarantees the proper length for NPT threads. Also features through die-head oiling.

654/655 Thread Machine Features

  • Flat Ways
  • Fabricated Steel Construction
  • Patented Chuck Jaw Inserts

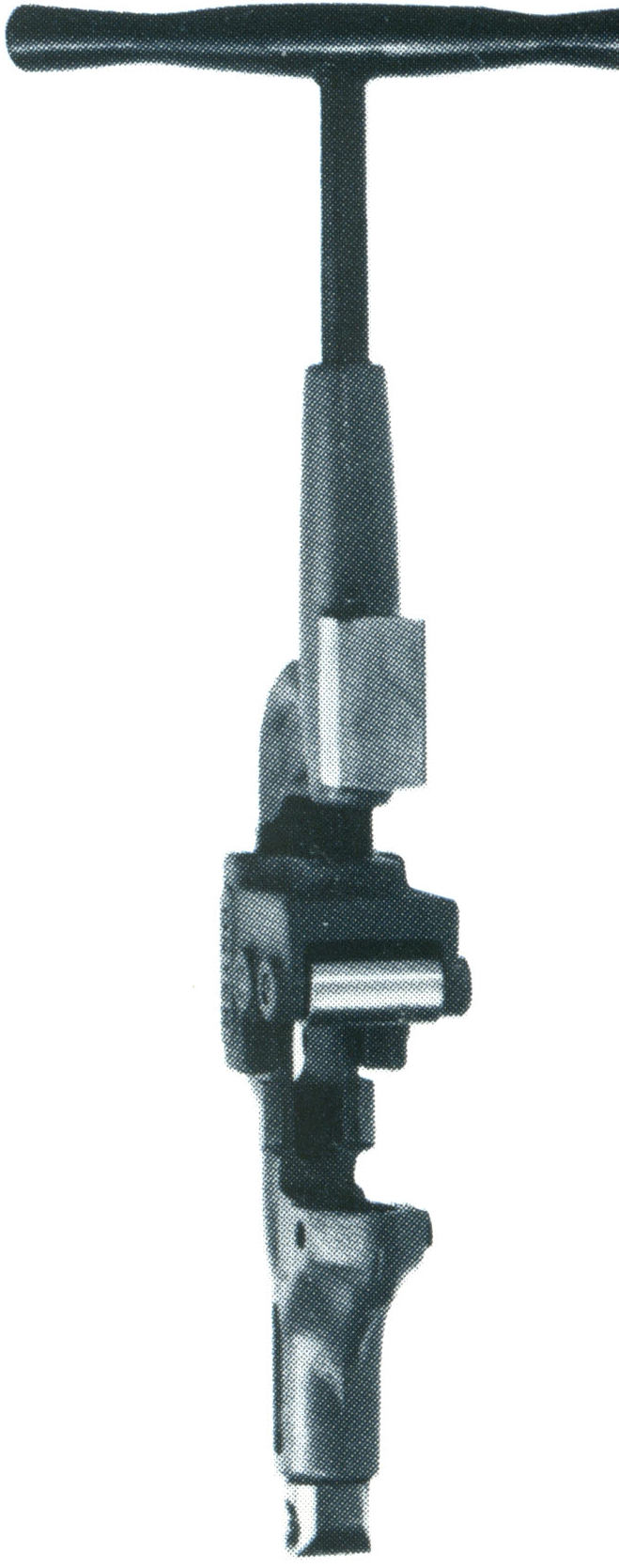

  • "See Thru" Cutter furnished with the Oster 654 shows exactly where the cut will take place.
  • Thru-the-head coolant system on the Oster 654 Machine.
  • Automatic or Manual Opening Die Head
  • Attachment for "Breaking" Fittings (Optional)

Standard Equipment Furnished

  • Motor - SINGLE PHASE Universal, Reversible, variable speed - specify either 120 or 240 volt. AC, 1 phase 50-60 Hz. Rated 1/2HP, develops up to 2HP Spindle Speeds(No Load) - Standard 38 RPM, optional 60 RPM.
  • Switch - Heavy duty, reversing. Safety foot switch also included. Operator must have foot on this switch for machine to operate.
  • Diehead - ONE, QUAD II QUICK-OPENING type - capacity 1/8" thru 2" pipe.
  • Dies - TWO sets, High Speed Steel Pipe Dies (Symbol Quad) Right-Hand, 1 set (1/2" and 3/4"), 1 set (1" thru 2").
  • Reamer - Detachable, Blade type
  • Cutter - Roller type, self centering. (Blade type available with 655).
  • Front Chuck - Fast, Positive! Grips in both right and left hand direction. Equipped with replaceable jaw inserts.
  • Rear Centering Chuck - Rotating Type - Scroll actuates 3 guides simultaneously.
  • Oil Pump - Reversible, gear driven vane type with relief valve.
  • Oil - Thread cutting, TWO gallons - Oster "BESTOIL".

Dark Thread Cutting Oil for Pipe and Bolt Threading Machines

Keep threads cool and reduce friction with Oster’s Superior Threading Oil (“OSTO”) dark thread cutting oil. Our high-quality dark thread cutting oil increases the life of your die and ensures perfect threads every time. OSTO outperforms competitors every time, preventing chip welding and formulated to have a vise-like grip on the work material. Best of all, OSTO features an infinite shelf life and never goes bad or breaks down during the threading process.
