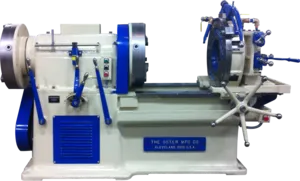

Oster 8R "Rapiduction" Industrial Pipe and Bolt Threading Machine-8" Capacity

Oster 8R
Capacities
Standard Pipe Range 2.5" to 8"
Standard Bolt Range 2" to 6"



General Specifications
Spindle Speeds, Variable 7-9-14-21-26-42
Carriage Travel 25"
Length 98.5"
Width 50"
Height 62.5"
Net Weight 7640 lbs.
Shipping Weight 7940 lbs.

The Finest in Quality, Design and Performance for Thread Machines

You'll see from the heavy massive construction, that the 8R is built to last. Hand scraped ways and bearings are one example of the craftsmanship built into this fine machine. In addition to the massive construction, the 8R is designed to save hundreds of dollars in costly set-up time. Two additional clutch levers - one front and one rear - in conjunction with the rear flange gripping chuck, facilitates the making and breaking of fittings.

Request a Quote

Capacities
Standard Pipe Range 2.5" to 8"
Standard Bolt Range 2" to 6"



General Specifications
Spindle Speeds, Variable 7-9-14-21-26-42
Carriage Travel 25"
Length 98.5"
Width 50"
Height 62.5"
Net Weight 7640 lbs.
Shipping Weight 7940 lbs.

Contact Us

Never a Diehead Change for the Oster 8R Pipe Threading Machine!

Just set to size and thread! From the 2-1/2" Smallest Size In The Range To The Largest 8". No time consuming set-up whether you cut one thread- or a thousand -on your Oster No. 8R. A single die-head threads all sizes of pipe from 2-1/2" through 8"... without change of head, holders or dies. (Uses Symbol 8R Dies.)

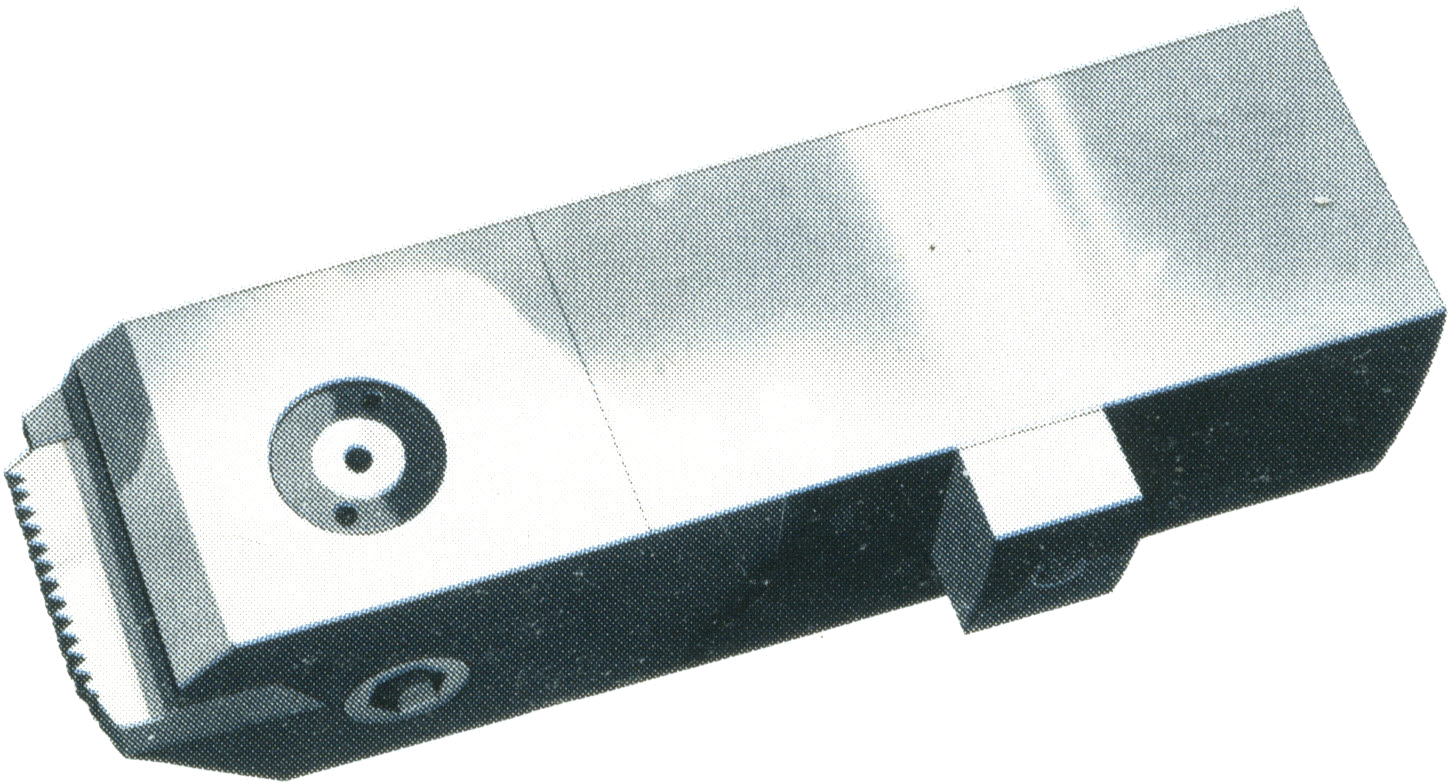

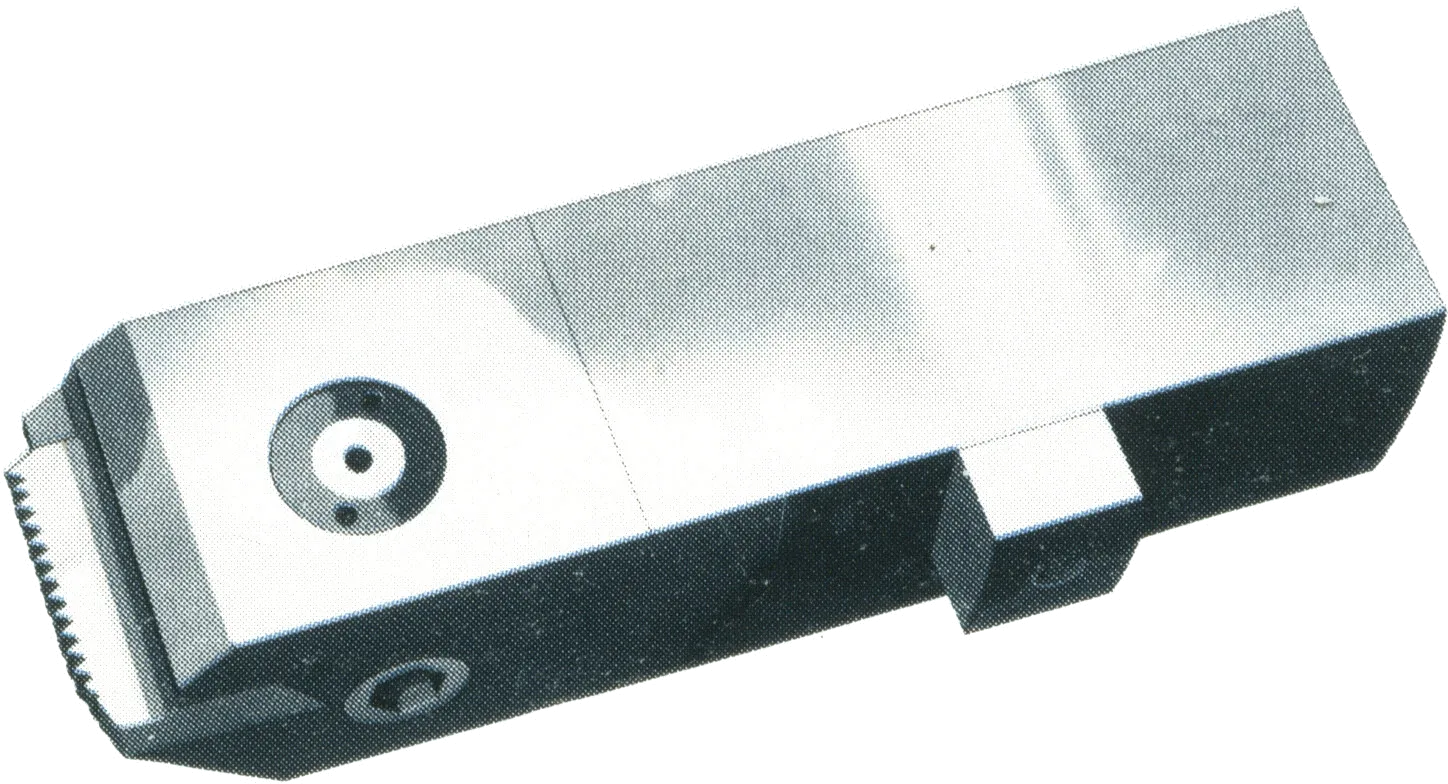

Radial Dies

M2 Tool Steel Dies are firmly held in durable steel holders. One set threads all sizes of same pitch and taper.

Accessories for the Oster 8R Threading Machine

Victaulic Type Grooving Tool Attachment

These Tools automatically insure correct depth, width and distance from pipe end for Victaulic Grooving applications. Available as extra equipment with the No. 8R Machine.

8T Machine

A Model 8T version is also available for precision A.P.I. threading. This machine incorporates a leadscrew, a taper attachment to give the correct taper rate for the pipe to be threaded and a die head utilizing tangential type chasers.

Additional Accessories for the 8R Threading Machine

No. 6 Nipple Chuck, Adjustable Pipe Supports, OSTO – Oster’s Superior Threading Oil

Standard Equipment Furnished

  • Motor - 7.5hp., 1200 rpm., 3 phase, 60 Hz. 230 or 460 volts. (Motors of other specifications available.)
  • Motor Control - REVERSING magnetic starter and push button station, with safety 120V control circuit at machine controls.
  • Dieheads - ONE, radial, quick-opening type, adjustable to handle all sizes in standard range.
  • Die Holders - ONE set to cover standard pipe range.
  • Dies - ONE set to cover standard pipe range - 2-1/2" to 8", HIGH SPEED STEEL (Symbol 8R).
  • Reamer - Swing-type.
  • Cut-Off Device - Lathe style, blade type cut-off tool with double V block centering device.
  • Chamfer Tool - Lathe type, mounted in cut-off block.
  • Front Chuck - Powerful, Three-jaw, universal gripping.
  • Rear Chuck - Three flange jaw, universal gripping.
  • Gage - Direct reading DRUM type, mounted on carriage handwheel.
  • Oil Pump - Internal gear type - automatic reversing.
  • Oil - Thread cutting, THIRTY gallons - Oster "OSTO".

Request for Quote

Dark Thread Cutting Oil for Pipe and Bolt Threading Machines

Keep threads cool and reduce friction with Oster’s Superior Threading Oil (“OSTO”) dark thread cutting oil. Our high-quality dark thread cutting oil increases the life of your die and ensures perfect threads every time. OSTO outperforms competitors every time, preventing chip welding and formulated to have a vise-like grip on the work material. Best of all, OSTO features an infinite shelf life and never goes bad or breaks down during the threading process.

Watch a Video of the Oster 8R Threading Machine

Let Us Answer Your Custom Applications or Technical Questions

Get technical support from pipe and bolt threading machine experts. When you call Oster Manufacturing there is always a human being on the other end of the line. We have skilled technicians and sales experts on hand to take your call.

If you’re interested in a machine or tooling for a non-standard threading application, we are happy to consult with you on the project. We can create custom engineered solutions to make your project idea a reality. We also manufacture a variety of custom tooling for special projects and keep them in stock for you. Never wait for tooling for a difficult project again.
